ip_bit.h File Reference

#include "stralloc.h"

Include dependency graph for ip_bit.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	bitstring_ip4 (stralloc *, stralloc *)
int	ip4_bitstring (stralloc *, char *, unsigned int)
void	getnum (char *, int, unsigned long *)
int	bitstring_ip6 (stralloc *, stralloc *)
int	ip6_bitstring (stralloc *, char *, unsigned int)
unsigned int	ip6_fmt_str (stralloc *, char *)

Function Documentation

bitstring_ip4()

int bitstring_ip4	(	stralloc *	ip4addr,
		stralloc *	ip4string
	)

/fn bitstring_ip4 /brief This function takes an IPv4 bitstring and translates it to an IPv4 address + prefix /param in: ip4string The source address (with '_' start token). /param out: ip4addr 0-terminated estination IPv4 address + net prefix (eg. 127.0.0.0/16). /return -1: lack of memory; 1: non valid IPv4 address; 0: successful converted.

Definition at line 69 of file ip4_bit.c.

Here is the caller graph for this function:

bitstring_ip6()

int bitstring_ip6	(	stralloc *	ip6addr,
		stralloc *	ip6string
	)

/fn bitstring_ip6 /brief This function converts a bit string which is produced by ip6_bitstring() into an IPv6 address. The string may start with a '^'. /param in: ip6string Source string which need to be converted. /param out ip6addr 0-terminated IPv6 destination address with net prefix. /return -1: No memory could allocated,0: Failure,1: Success.

Definition at line 102 of file ip6_bit.c.

Here is the caller graph for this function:

getnum()

void getnum	(	char *	buf,
		int	len,
		unsigned long *	u
	)

Definition at line 75 of file tcprules.c.

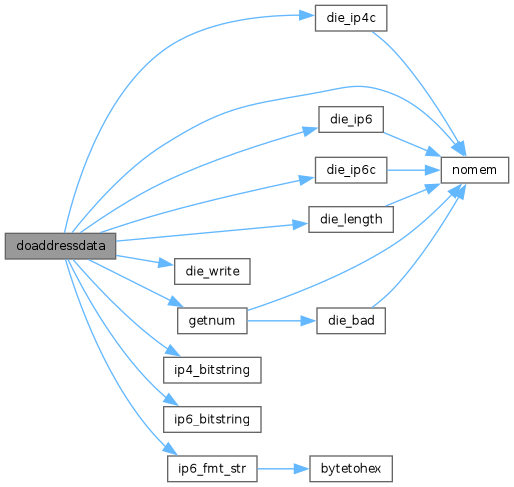

Here is the call graph for this function:

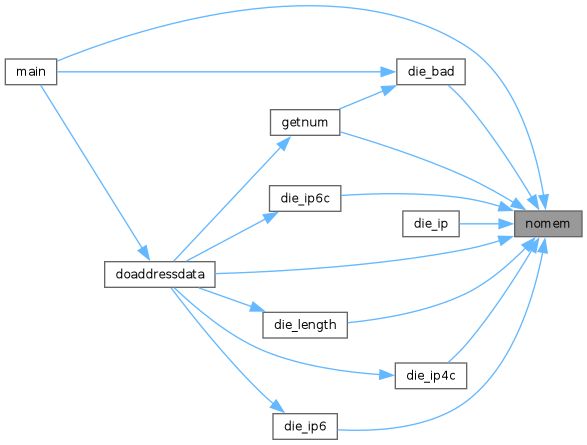

Here is the caller graph for this function:

ip4_bitstring()

int ip4_bitstring	(	stralloc *	ip4string,
		char *	ip,
		unsigned int	prefix
	)

/fn ip4_bitstring /brief This function converts a IPv4 address into its binary representation with given prefix len /param out: ip4string 0-terminated destination address. /param in: ip4address The source address. /param in: prefix The net prefix bits (maximum 32 bits for IPv4). /return -1: lack of memory; 1: non valid IP address; 0: successful converted.

Definition at line 26 of file ip4_bit.c.

Here is the caller graph for this function:

ip6_bitstring()

int ip6_bitstring	(	stralloc *	ip6string,
		char *	ip6addr,
		unsigned int	prefix
	)

/fn ip6_bitstring /brief This function converts a IPv6 address into its binary representation. /param out: ip6string The destination address. /param in: ip6addr The source address. /param in: prefix The net prefix bits (maximum 128 bits for IPv6). /return -1: lack of memory; 1: non valid IPv6 address; 0: successful converted.

Definition at line 48 of file ip6_bit.c.

Here is the caller graph for this function:

ip6_fmt_str()

unsigned int ip6_fmt_str	(	stralloc *	dest,
		char *	src
	)

/fn ip6_fmt_str /brief This function expands any valid IPv6 address into its full format of 16 bytes. It returns the number of processed tokens on success. /param src Source IPv6 address. /param destination Expanded IPv6 address. /return -1: No memory could allocated; 1: failure, 0: success

Definition at line 161 of file ip6_bit.c.

Here is the call graph for this function:

Here is the caller graph for this function:
